Number State Source Example

This example demonstrates the use of the NumberStateSource with the polynomial state.

from __future__ import annotations
from symop.devices.models.sources import NumberStateSource
from symop.modes.labels import Path, Polarization
from symop.modes.envelopes import GaussianEnvelope
from symop.polynomial.state import KetPolyState

# Visualization Package
import symop.viz as VI

Setup: set up a mode labels and then the single photon source

src_env = GaussianEnvelope(omega0=2.0, sigma=1.0, tau=0.0)
src_pol = Polarization.H()

src_dev = NumberStateSource(envelope=src_env, polarization=src_pol, n=1)

1) Generate the state - Generate the vacuum state for the source to populate - For populating the vacuum __call__() can be used or .apply()

vac = KetPolyState.vacuum()
single_photon_state = src_dev(
    vac,
    ports={"out": Path("src_out")},
)

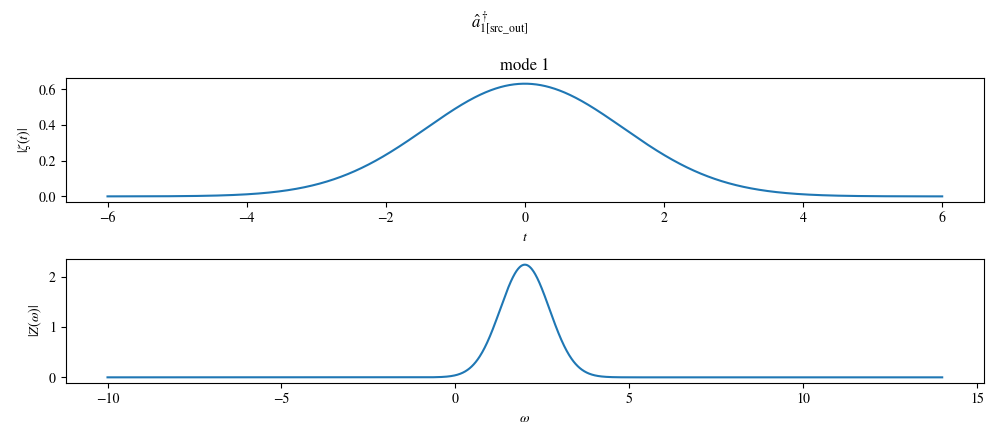

2) Inspect state

VI.plot(single_photon_state)
VI.display(single_photon_state)
